Directly charge a 3700mAh vape in 15 minutes with USB-C cable, astonishingly fast and assuredly safe.
Ultra-long battery life keeps up for 2 days and allows to share your power with loved ones.
Co-worked perfectly with leakproof Geekvape Z Sub-ohm Tank or Obelisk Tank with childproof safety design,
Obelisk 120 FC awaits you to explore.

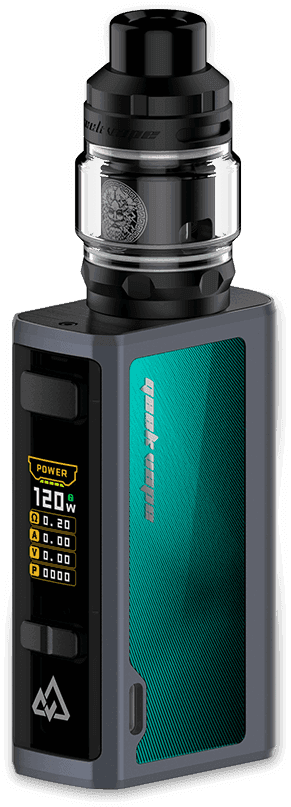

Obelisk 120 FC Z Box Mod Kit is the combination of Obelisk 120 FC Mod and Z Sub Ohm Tank (Zeus Sub Ohm Tank). The mod has 3700mAh built-in battery and can be charged directly and fully in 15 mins with USB-C cable for two days use. Less heat will reach the Obelisk 120 FC with the co-work of the upgraded chip and USB-PD power adapter, which will make the charging safer. In addition, the USB-PD power adapter is compatible with approved USB-C devices. It also supports Power/TC-SS/TCR/VPC/Bypass/OTG mode. Paired with the 5ml Z Sub Ohm Tank that comes with leakproof top-to-bottom airflow system and adopts Z series coils, Obelisk 120 FC Z Kit will provide massive flavor and vapor. There is also an exclusive Obelisk Tank with childproof safety design for more vapor (sold separately).
Main Features:
1. 15 minutes fast charging for two days use
2. USB PD safe charging, USB-C direct charging
3. Built-in 3700mAh battery capacity
4. OTG reverse charge
5. GeekVape Z Coil brings massive flavor and vapor
6. Paired with Z Sub Ohm Tank
7. Leakproof top-to-bottom airflow system
8. Quick slide coil design for easy operation
9. Protections: Overheat/Low Temperature/Triple Overvoltage/Low Voltage/Charge & Discharge Overcurrent/Circuit Short/Low Ohm Protection
Specifications:
- Power Output: 5-120W
- Temperature Control: 200℉-600℉/100℃-315℃
- Working Mode: Power/TC-SS/TCR/VPC/Bypass/OTG
- Battery: 3700mAh, 7.4V, 16.69Wh
- Fast Charging: 65W PD fast charging (20V/3.25A, 15 mins), Over 300 times cycle charging
- Regular Charging: 5V, max 2A
- OTG Reverse Charging: 5V, max 2.4A (auto stop charging, back to previous working mode)
- Longest Vaping Time: 10s
- Working Temperature: ﹣10-60℃
- Display Screen: TFT 0.96-inch color screen
- Charging Port: USB-C
- Charger Type: Wall charger with interchangeable adapter (US/UK/EU/AU Version)
- Charger Output Voltage: 5V, 3A/9V, 3A/12V, 3A/15, 3A/20V, 3.25A
- Charger Input Voltage: 100-240V
- Fast Charging Protocols: Support PD2.0, PD3.0, QC2.0, QC3.0, QC4.0
- Charger Certificates: CCC, UL/CUL, FCC, CB, CE, SAA, RCM
- Drip Tip: Replaceable 810 drip tip
- Included Coils: Z 0.2ohm and 0.4ohm mesh coils
- E-juice Capacity: 5ml
- Color: Silver, Blue, Gunmetal, Black
